arrondi: a closed refrigerated cabinet

Royal Smeva introduces arrondi. A closed self-service cabinet that customers can approach from all sides. The shoparound refrigerated cabinet consumes up to 50% less energy, with up to 35% less floorspace compared to traditional open refrigerated cabinets.

Suitable for:

Benefits arrondi:

  • Save up to 50% energy

  • On average 35% less floorspace

  • Vertical spacesaving product display

  • Optimal visibility

  • Unique glass design

  • Quick & easy installation and maintenance

360 ̊ shopping with arrondi refrigerated cabinet

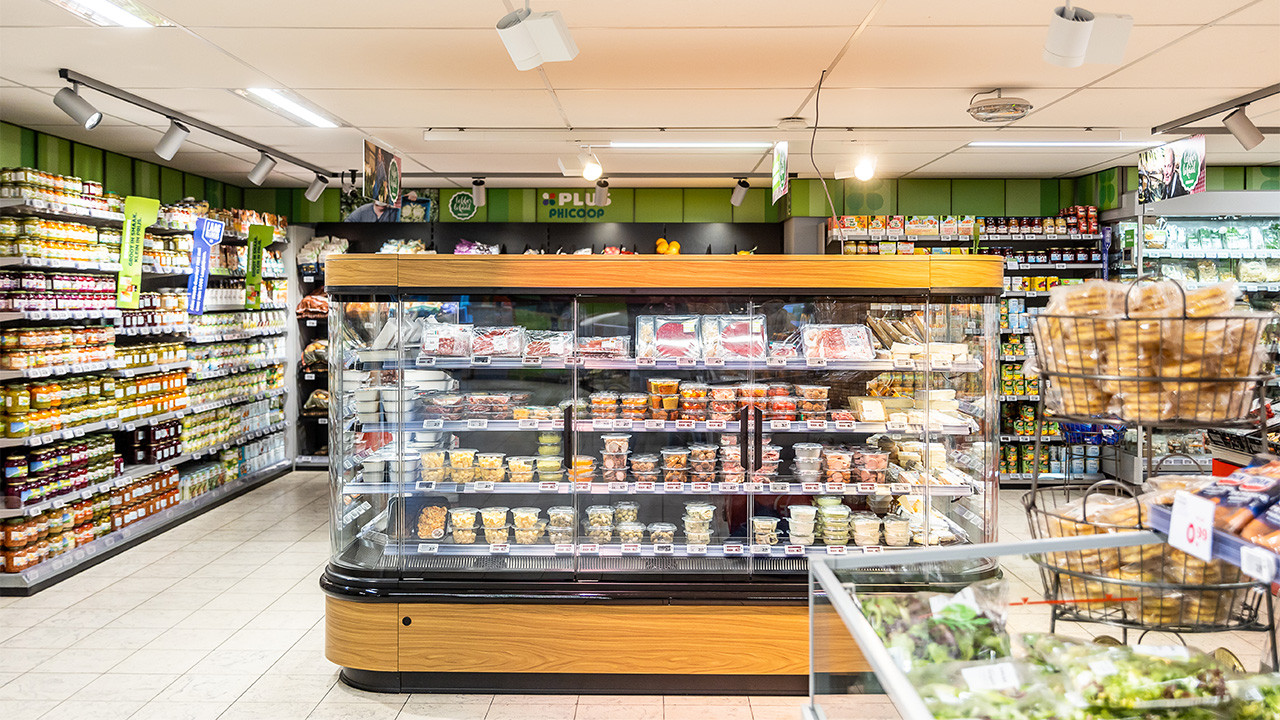

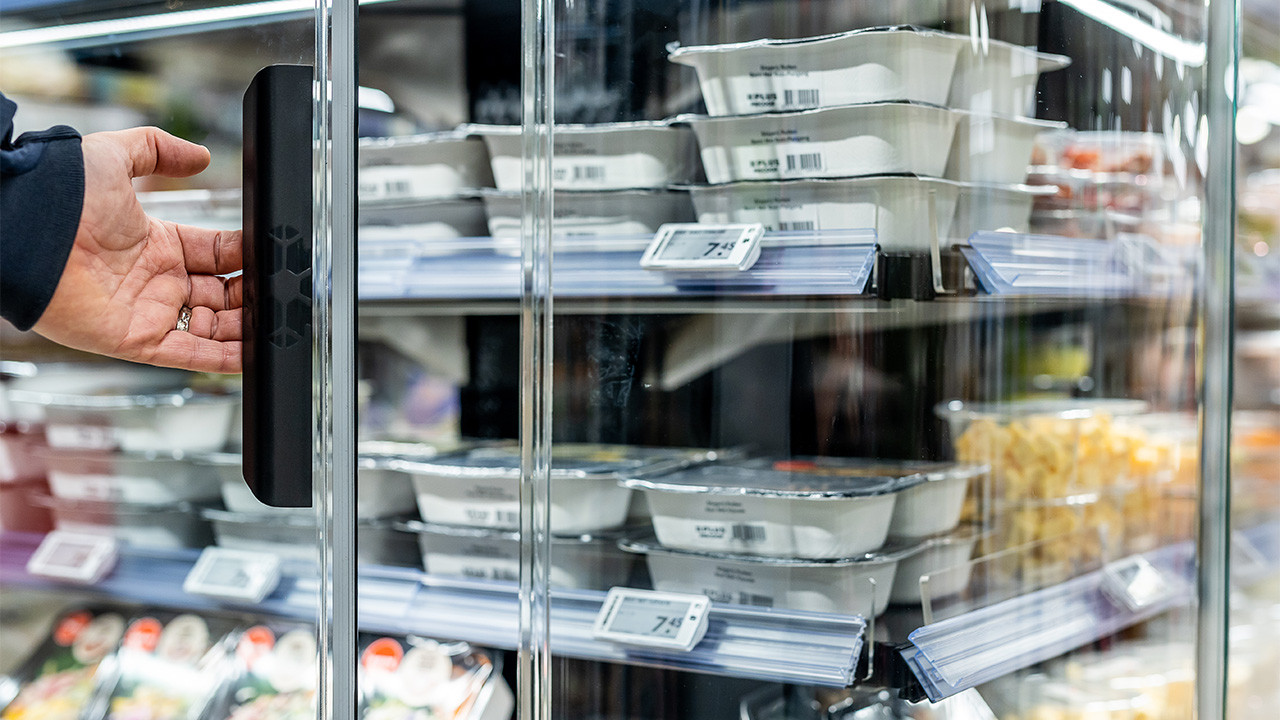

arrondi is an innovative, transparent vertical multi-deck cabinet with integrated glass doors. The cabinet can be opened from all sides which offer a shoparound approach. The transparent concept, with integrated LED lighting, ensures an attractive, highly visible product presentation. An additional feature for a premium fresh experience is the round glass design of the corners.

arrondi saves floor space in retail

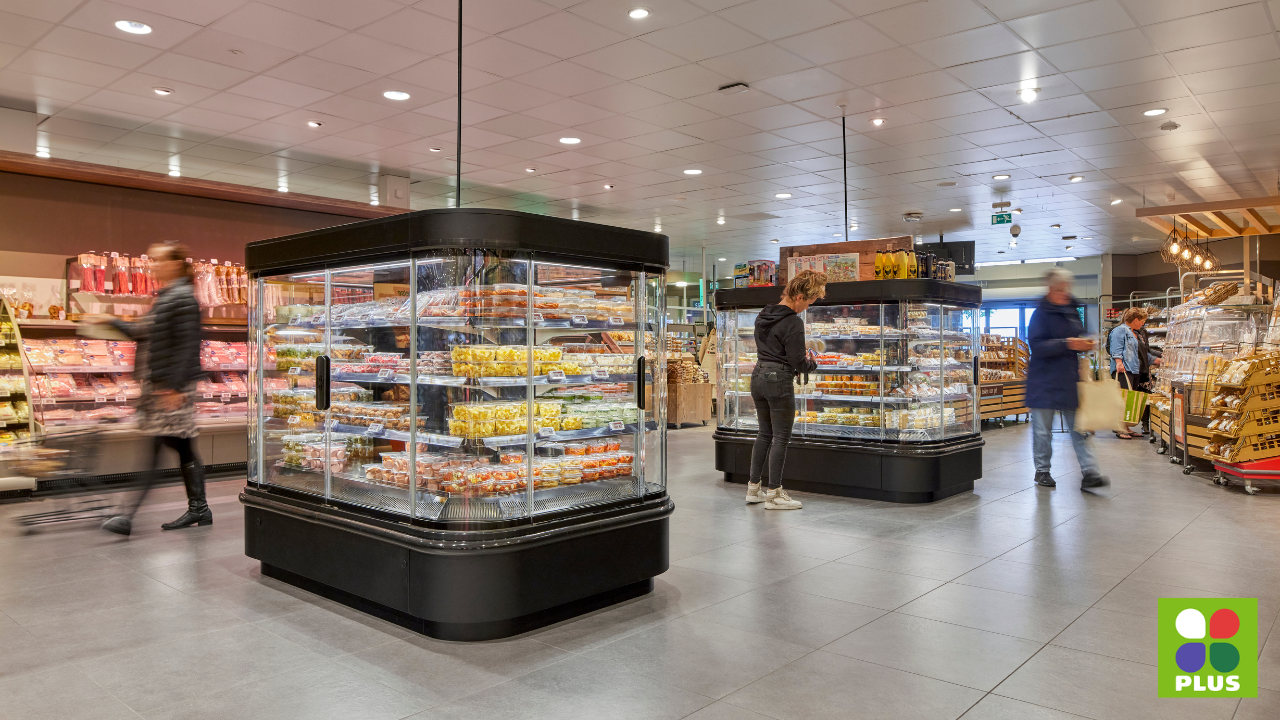

arrondi integrates four refrigerated cabinets into one shoparound refrigerated cabinet. The set-up is up to 35% more compact than traditional island configurations, due to the vertical, space-saving presentation. The space-saving design is not at the expense of the available display area. arrondi combines large display capacity with maximum visibility. arrondi is available both plug-in and remote.


Optimal visibility

  • Transparent design

  • 360  ̊shopping


  • Save up to 50% on energy costs

  • Patented (NL), energy-efficient air flow

Minimum floorspace

  • Save up to 35% floorspace (m2)

  • Large capacity

Energy-efficient arrondi

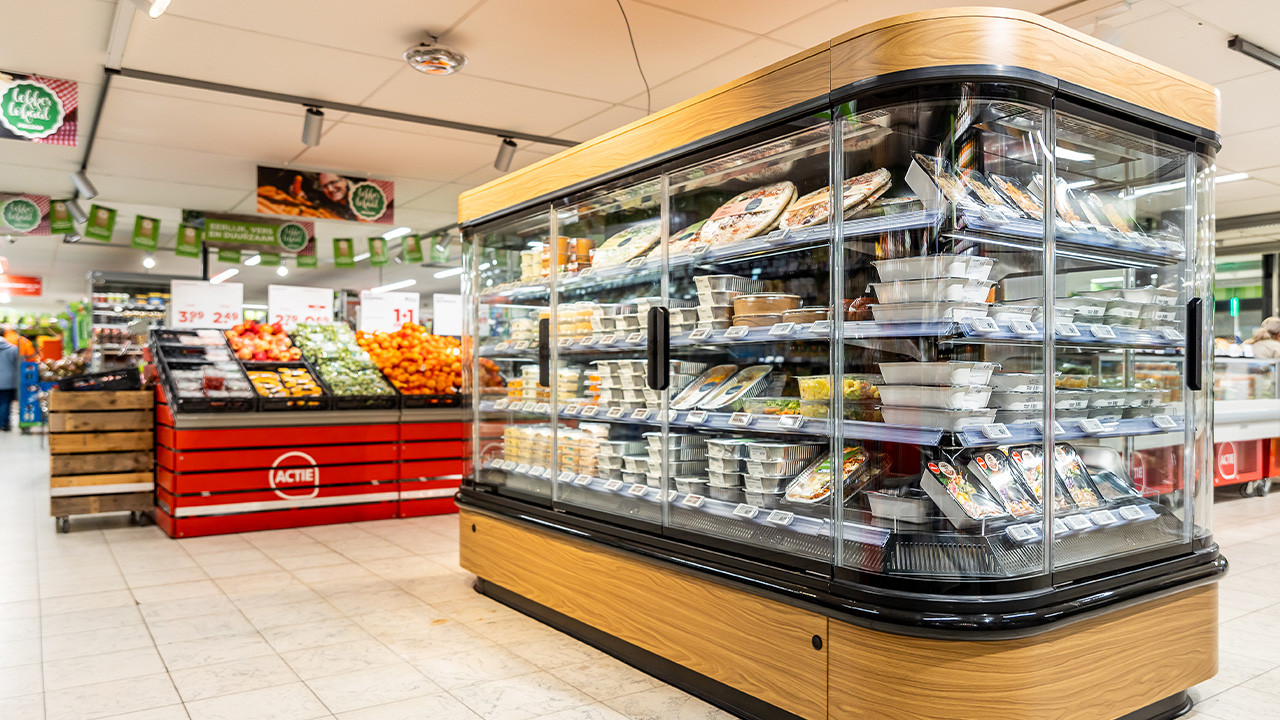

arrondi was created for top quality food preservation with ultra-low energy consumption. With arrondi you will not only save on floor space, but also on energy costs. The cabinet has energy-saving glass doors and a patented (NL) airflow. Because saving energy was a key element in the development of arrondi. arrondi has been tested extensively in various setups: all studies showed that arrondi saves up to 50% energy compared to open refrigerated cabinets.


arrondi, refrigerated self-service cabinet


1875 mm + 625 mm modules


Low version: 1560 mm

High version: 2140 mm


1272 mm

Shelf presentation depth:

390 mm (longside) / 312 mm (headside)

Presentation depth:

Bottom shelves: 400 mm

Centre shelves: 390 mm

End shelves: 312 mm

Inclination angle base display platform:


Window and doors:

Double and tempered glass

Nominal voltage:

240 Volt 50 Hz

Temperature controllers:

Carel / Danfoss


LED lighting in cove and under every shelf

Cooling technology:

Air ventilation


Remote / Plug-in


Remote: R744 / R448a / R449a
Plug-in: R290


RAL 9005 powder-coated

Double and tempered glass

Anodized aluminium

Stainless steel (304L)

Powder-coated galvanized steel


Galvanized plate

PVC wood look laminated / RAL-colour

Double and tempered glass



Black / silver
